24 cores ADSS Fiber Optic Cables with High Performance For Outdoor

Payment Terms:	T/T,L/C,WU
Special Groups:	outdoor fiber optical cables (1)
Place of Origin:	Guangdong, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Means of Transport: Ocean,Land,Air

Packing: 4km/reel

Application: Telecommunications

Brand Name: TESO

Certification: CE

Core: 24

Package: 4KM/reel or customized

Production Capacity: 10000000M/week

Delivery Date: 5-10days

Type: ADSS

Number of Conductors: 12,24,48,96

Jacket: PE

HS Code: 854470000

1.ADSS 12 core fiber optic cable.
2.Fiber type:ITU G652D, Standard for SM optical fibers with 6 color
3. Maximum Span(m):200.

Quick Detail:

1.ADSS 24 core fiber optic cable.

2.Fiber type:ITU G652D, Standard for SM optical fibers with 6 color

3. Maximum Span(m):100.

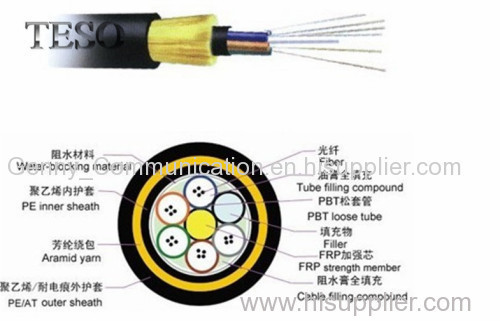

4.Structured : FRP strength member+ optical fiber+ Filler+ PBT loose tube +Tube filling compound + water blocking material +cable filling compound +PE inner sheath+ Aramid yarn strength member+ PE outer sheath

Description

*ADSS optical cable adopts loose tube stranded.

*Optical fiber are positioned into a loose tube made of high modulus plastics.

* The tubes are filled with a Water-blocking filling compound.

*The tubes(and fillers) are stranded around FRP as a non-metallic central strength member into compact and circular cable core.

*The cable is completed with PE outer jacket.

Laying method

Self-support Aerial Installation

Parameter

Item	Value

Cable Structure		1+6

Fiber Count		24

Maximum Field Voltage(KV)		12
Fiber Type	ITU G652D, Standard for SM optical fibers with 6 color
Loose Tube	PBT Loose Tube with 6 fibers in each tube and 4color: blue/orange/green/brown
Ref. Outer Diameter ±0.2(mm)		12.1
Modulus of Elasticity(kN/mm2)		7.2
Attenuation Coefficient (db/km)	≤0.36 @1310	≤0.22 @1550

Mechanical Behavior


Maximum Span(m)	100

Wind Speed(m/s)	40

Ref. Weight(Kg/km)	120
Heat Expansion Coefficient(10-6/oC)	8.8
Break Strength (KN) / RTS	7
Max. Tensile Strength(N)	Short Term:2200	Long Tern:1000
